Your Customised Touch Design
Many versions of PCAP Touch Screens from 1.77" to 75"
Options of projected capacitive touch screen and a design to suit your requirements.

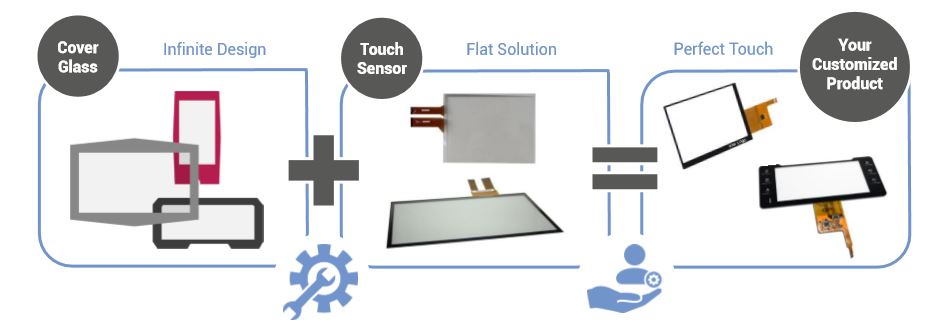

Modular touch solutions to give you the perfect design:
For more information on our Infinite Touch Display Solutions please today on 01480 411600 to see how we can help you find the perfect display solution.
Infinite Touch Features
- Special glass shapes
- Colored prints in your favorite colors
- Logo prints
- Special coatings, such as anti-glare or privacy filter
- Shatterproof cover glasses in different strengths for public areas
- Chemically strengthened glass
- Aluminosilicate glass (Dragon, Gorilla, Panda, Xensation)
- Glass processing
- Cutouts, holes
- Fingertip recess or slider (circular / elongated), polished or ground
- Edges, steps or grooves
Antiviral protection film/ Antibacterial glass
Our robust antibacterial and antivira lreleases copper ions that destroy viruses - including SARS-CoV-2 - and bacteria within minutes and significantly reduces the risk of infection from touch surfaces. Nevertheless, the film is crystal clear and tolerates all common cleaning agents. For our POS-PRO monitors and for projects, we apply the film precisely to our display solutions.
Antibacterial glass contains silver ions that reliably kill bacteria such as Escherichia coli or Staphylococcus aureus. They are also optionally available with AR or Easy-to-Clean coating and are particularly suitable for areas with high hygienic requirements, for example in the medical field.
Special coatings and filters
Different coatings and filters on the glasses or lenses bring advantages for special areas of application:
- Antiglare and antireflection filters improve the readability of the display in sunlight and reduce reflections
- Privacy filters prevent viewing of screen contents when viewed from the side and protect the privacy of the user
- Easy-to-clean and anti-smut (AS) coatings offer a lotus effect and make cleaning the glass surfaces easier
- IR filters prevent the heating of the display by the front infrared radiation of the sun
- UV filters prevent the harmful long-term effects of the aggressive UV radiation from the sunlight
Splinter protection according to DIN EN12600
Should a protective glass break due to impact or force, sharp-edged splinters may result, posing a risk of injury. Especially in public areas or in food production, this creates a considerable risk potential that can be avoided by applying a splinter protection film. The glass will break, but there will be no dangerous splinters.
The film is cut to fit the protective glass, it comes laminated and includes the following benefits:
- scratch resistance of 3H
- consist of a PET / PVC material
- are only approx. 120 µm thin
- can be cleaned with alcohol-based cleaners
- comply with EN 12600 2B2 standard and are REACH and RoHS compliant
Your requirements determine the final product.
We use our autoclave to laminate touch films in sizes ranging from 1.77" to 32" on customized cover glasses. By using a touch foil instead of a conventional touch screen we eliminate a glass layer between TFT display and cover glass.
This saves space and gives better optical results.
With our technology we can optically bond the touch screens with a display of your choice from our to one unit.
In addition to the customized designs, we offer the PCAP touch screens as a with black or white sealing.
